SAILOR 250/500 FLEETBROADBAND
FLEEDBROADBAND

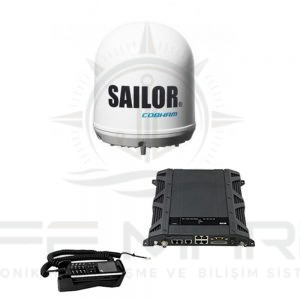

SAILOR 250 FleetBroadband harnesses the flexibility of Inmarsat’s successful I-4 satellite service, FleetBroadband. It offers budget conscious fishing vessels, workboats and yachts the opportunity to enter the broadband arena whilst providing the reliability and functionality expected of systems for large commercial vessels.SAILOR 250 FleetBroadband is based on the same architecture as the flagship SAILOR 500 FleetBroadband, and with Thrane & Thrane’s unrivalled experience in satcoms for sea, land and aero- space applications, you can be confident of both the quality of the equipment and the support behind it.

Teklif Formu

Speed and Budget With data speeds up to 284 kbps from an antenna diameter less than 30 cm, which weighs just 5 kg, this compact system provides performance and power at the right price point. A wealth of appli- cations are possible based on its core functionality: • IP connection for e-mail and internet/intranet access including secure VPN • Streaming IP (Guaranteed bandwidth for data sessions or applications requiring a specific bandwidth – 8, 16, 32, 64 or 128 kbps) • Voice and data simultaneously For fishing vessels and workboats, SAILOR 250 FleetBroadband enables economical telephone, internet and e-mail access for operational and crew use. A low initial investment and the per MB pricing of FleetBroadband traffic means communication spend is reduced despite an increase in functionality and frequency of use. The same benefits are available for private yachts. Users can be confident that the rugged and reliable design engineered for professional use means it will take everything from a Mediterranean cruise to an Ocean crossing in stride. The Thrane IP Handset Make your cutting-edge SAILOR 250 FleetBroadband into a highly flexible, multi-station voice and data solution by adding additional Thrane IP Handsets. These rugged new plug-and play hand- sets let the user take full control of the flexibility of SAILOR 250 FleetBroadband through a highly intuitive user interface on the 2.2” TFT color screen and cutting-edge technology, including a state-of-the-art echo canceller and noise suppression software.

Specifications
Inmarsat FleetBroadband approved
Compliant to RTTE, CE Marked
FCC
Testet to FCC part 25
Frequency Band
Rx:
1525.0 - 1559.0 MHz
Tx:
1626.5 - 1660.5 MHz
Ch. width
10.5 - 189 kHz, Rx
21 - 189 kHz, Tx
Recommended Antenna Cable
Cable loss max/min
20 dB at 1,62 GHz and 1.0 Ω DC loop resistance
3 dB at 36 MHz - 4 dB at 54 MHz
Global Services
Voice
4 kbps AMBE+2
3.1 kHz Audio
Standard IP
284/284 kbps
Streaming IP
8, 16, 32, 64, 128 kbps
SMS
Up to 160 characters
Fax
Group 3 (via 3.1 kHz Audio)
Antenna Connector
ADU
TNC, female
BDU
TNC, female
BDU Interfaces
Power On/Off button
DC heavy duty power input connector with Remote on/off and locking mechanism
4 10/100Mbit Ethernet LAN user ports with Power over Ethernet (PoE)
Sim card
Factory default reset button
2 Independent RJ-11 phone 2-wire connectors
5 I/O connector with General Purpose I/Os:
L-band output
Status LEDs
Power Supply and Consumption
DC input range (isolated)
10 to 32V DC
Power (max), incl. antenna & PoE output
150 W @ 10-32V
Environmental Conditions
Ambient Temperature
-25 to +55 ̊C
Storage
-40 to +85 ̊C
Survival(poweron,nonfunctional)
-40 to +80 ̊C
Automatic thermal surveillance shuts down system gradually in ease of own temperature
BDU operating humidity
95% non-condensing at +40 ̊C
ADU enclosure
IPX6
ADU operating humidity
“Exposed” according to EN60 945
BDU enclosure
IP31
Icing (survival)
Max 25 mm
Vibration (ADU)
Vibration, operational
Random spectrum 1.05 g rms x 3 axes: 5 to 20 Hz: 0.02 g2/Hz
20 to 150 Hz: -3 dB/octave
Vibration, non-operational
Random spectrum 1.7 g rms 2 h x 3 axes (6 h total): 5 to 20 Hz: 0.05 g2/Hz 20 to 150 Hz: -3 dB/octave
Mechanical Shock
20g/11 half-sine
Telephone Functionality
Phone book
Message indication
Restricted dialling
Traffic logging
Local exchange
Up to 16 handsets, with individual numbers
Set-up and Router Functionality
Web server
Built-in NAT router
Network management
SIP server
11 PDP contexts
Remote access
Enhanced remote management
Activation of connection via SMS
Ship Motion
Roll
+/- 30 deg. per. 4 s, max. 0.7 g tan.
Pitch
+/- 15 deg. per. 3 s, max. 0.6 g tan.
Yaw
+/- 10 deg. per. 5 s, max. 0.3 g tan.
Surge
+/- 0.5g
Sway
+/- 0.5g
Heave
+/- 0.7g
Turning rate
+/- 36 ̊/s; Acc. 12 ̊/s2
Headway speed
22 m/s (42 knots)
Wind
100 knots
Dimensions and Weight
ADU
329.2 x Ø275.6 mm, 4.2 kg
BDU
42.5 mm/264.5 mm/273 mm, 2.5 kg
